Specification:

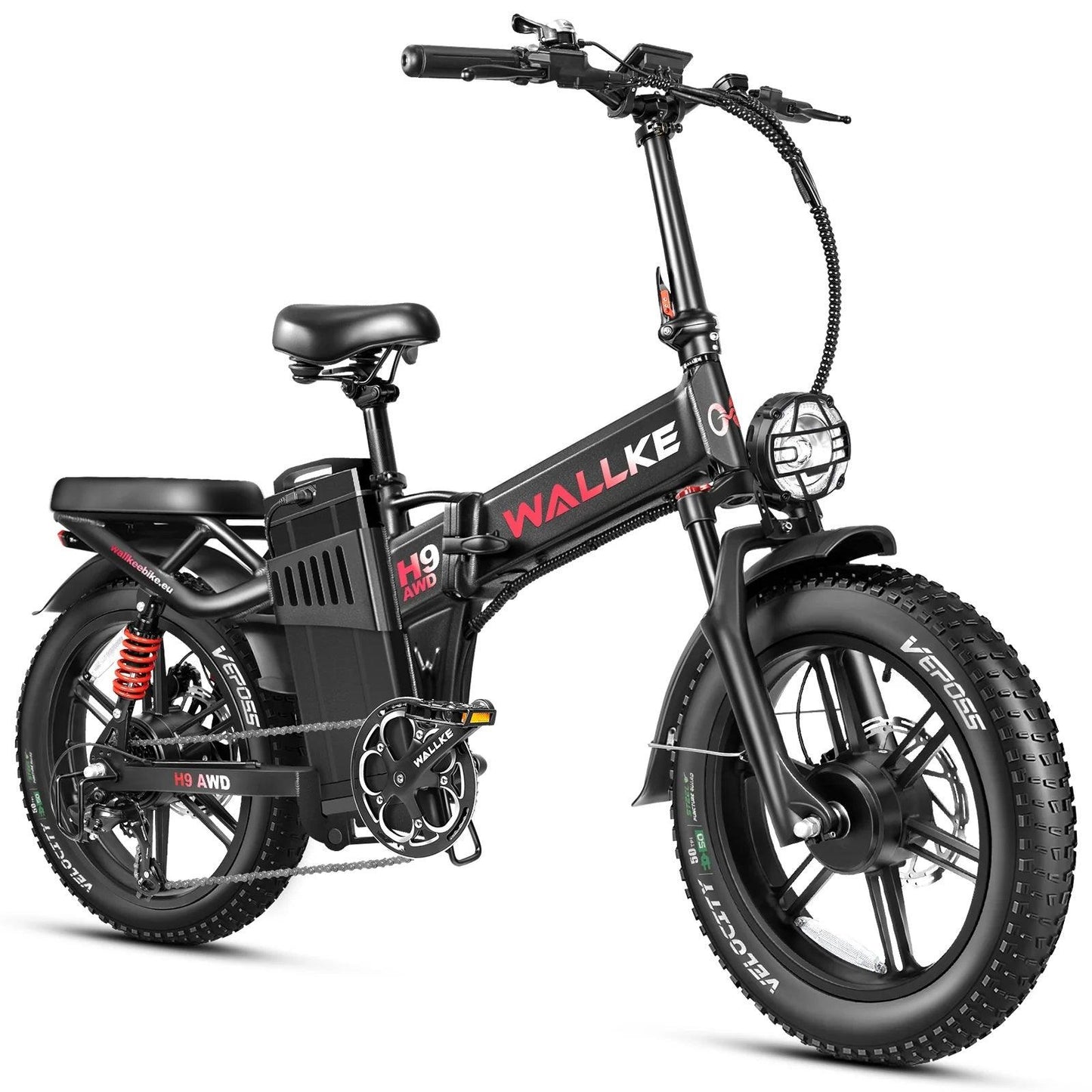

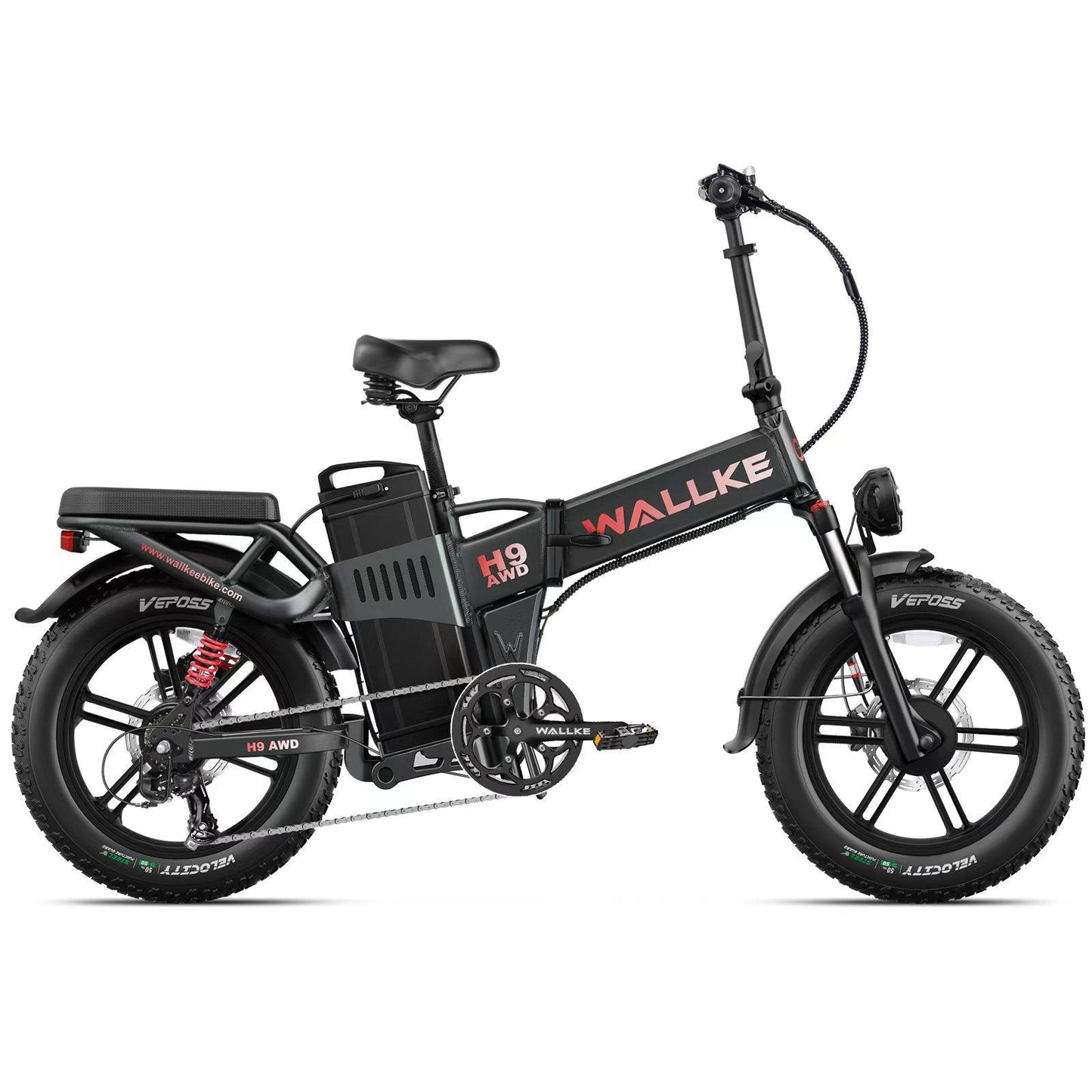

Model | H9 AWD |

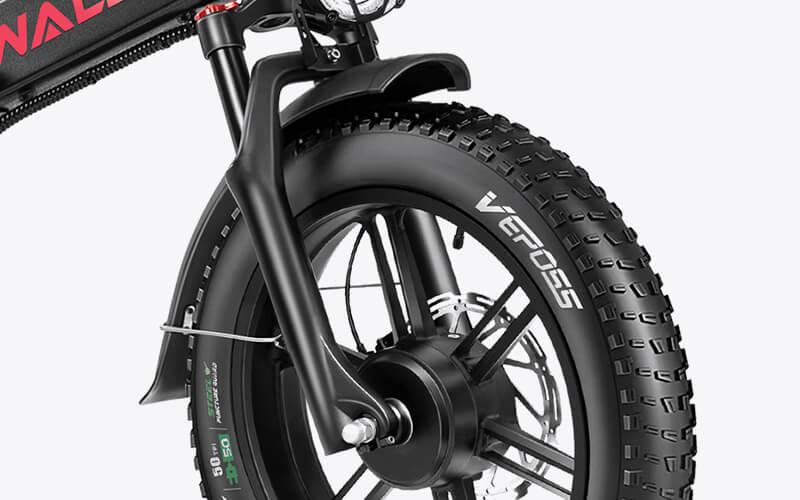

Front Fork | 20" hydraulic suspension with lock and adjust controls, aluminum |

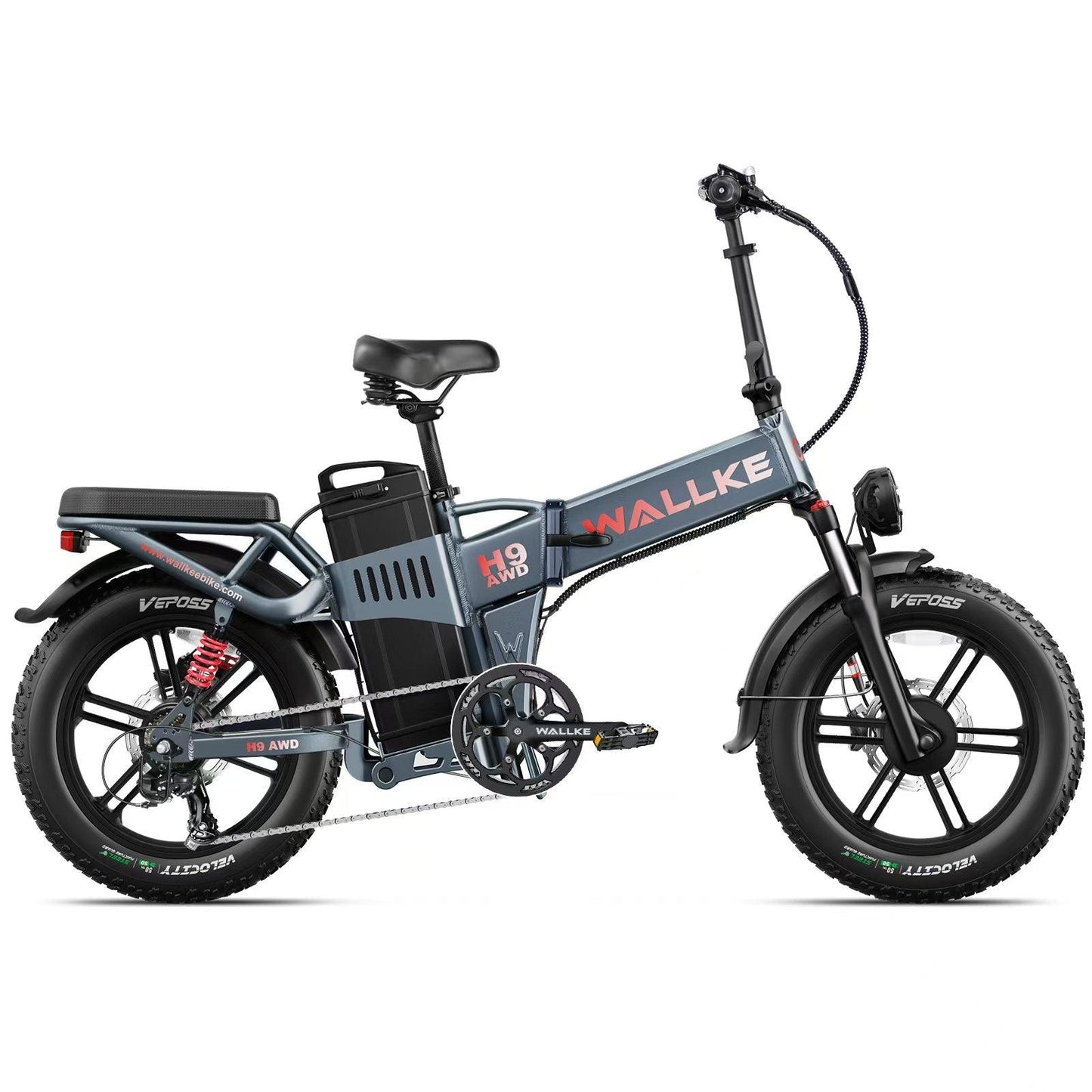

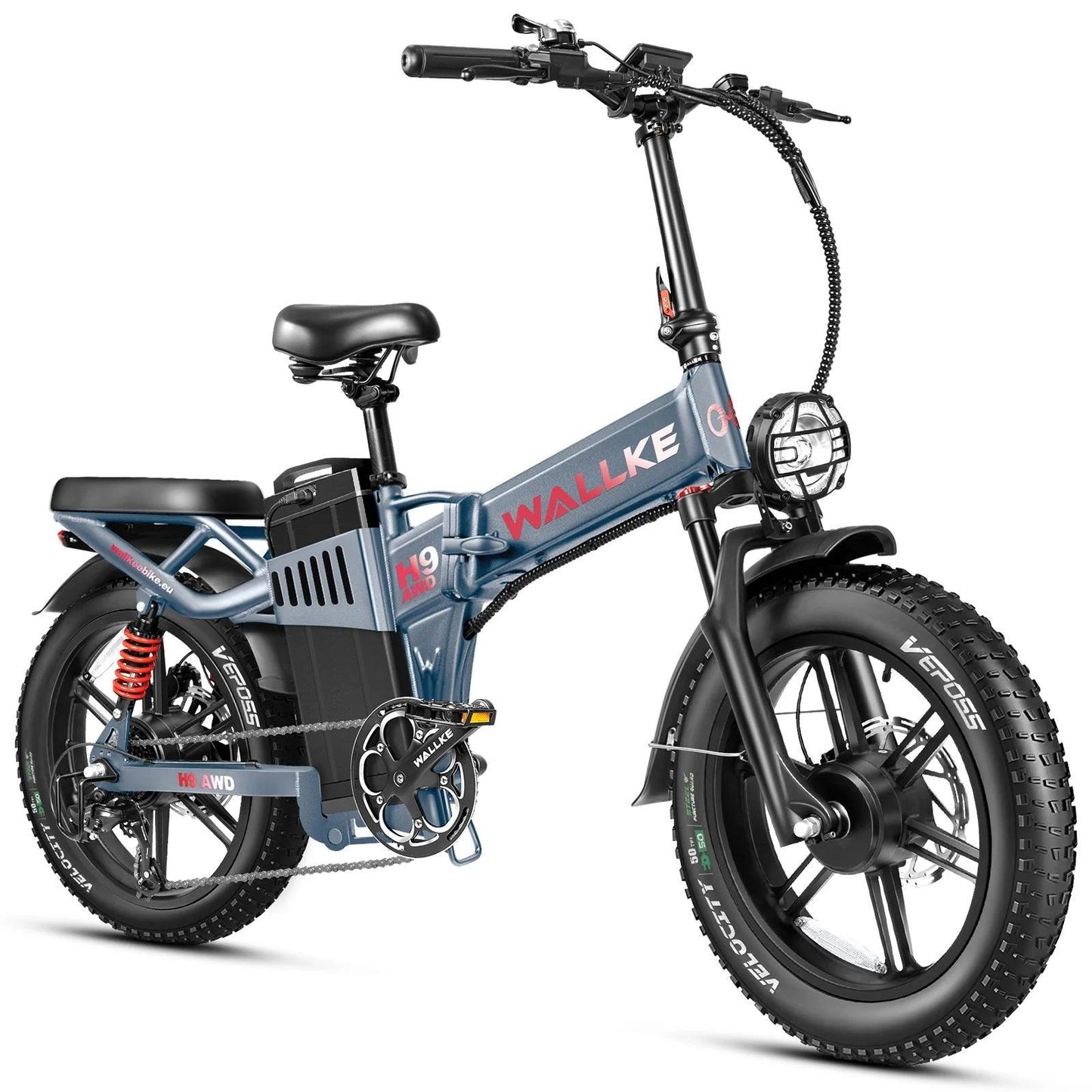

Colors | Black / Gray |

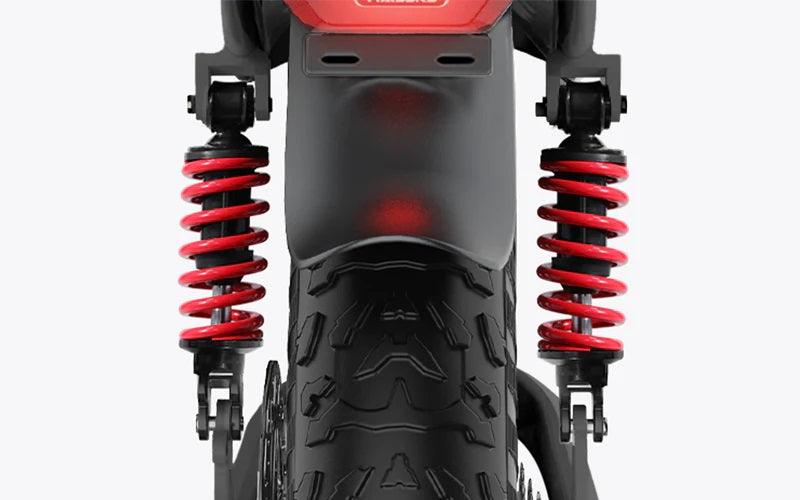

Rear Shock | Dual rear shock system, aluminum |
Class | 1. Pedelecs (Pedal-Assist E-Bikes) |
2. Speed Pedelecs (S-Pedelecs) | |
3. Throttle-Controlled E-Bikes | |
Rim | Mag wheel |
Motor | Two (front + rear) 1000W high-speed brushless gear hub motors |

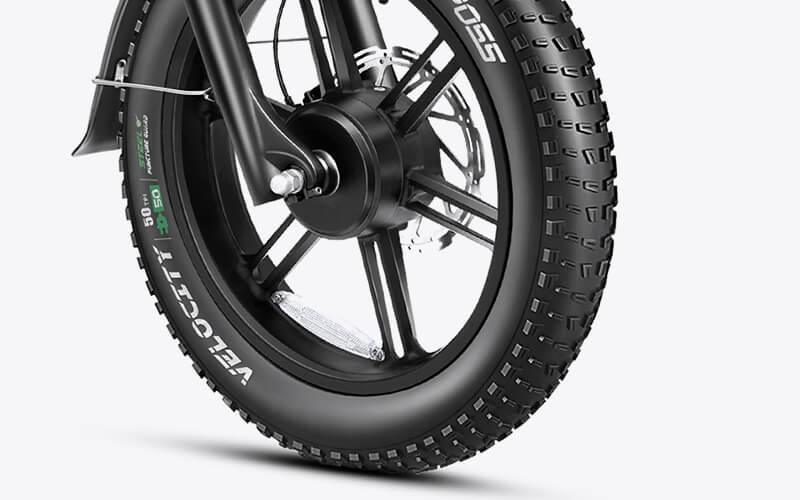

Tires | 20"x 4" all-terrain fat tires (with a certain degree of puncture resistance) |
Peak Power | 3200W (1600W + 1600W) |
Tubes | 20" x 4.0" thickened tubes |
Torque | 190NM (95NM + 95NM) |

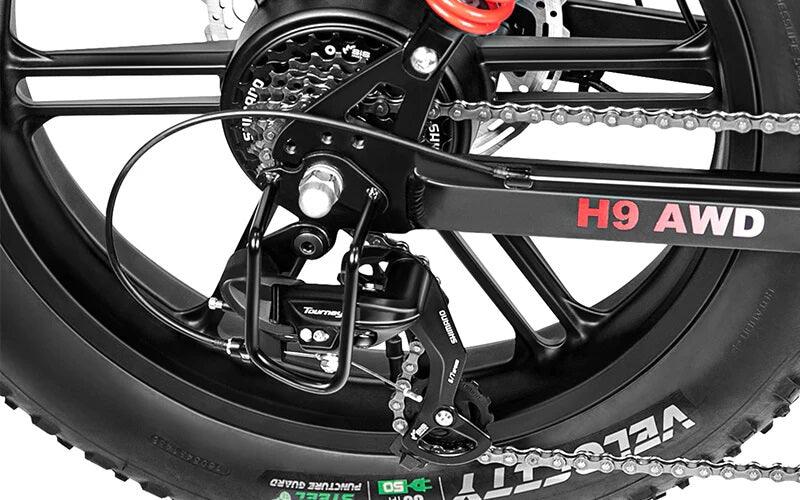

Derailleur | Shimano 7-speed rear derailleur system |
Top Speed | 31MPH / 50KPH |
Freewheel | 7 Speed cassette |
Battery Type | Lithium-ion battery |
Battery Capacity | 48V/40Ah (1920Wh); 48V/60Ah (2880Wh) |
Brand of Battery Cell | SAMSUNG |

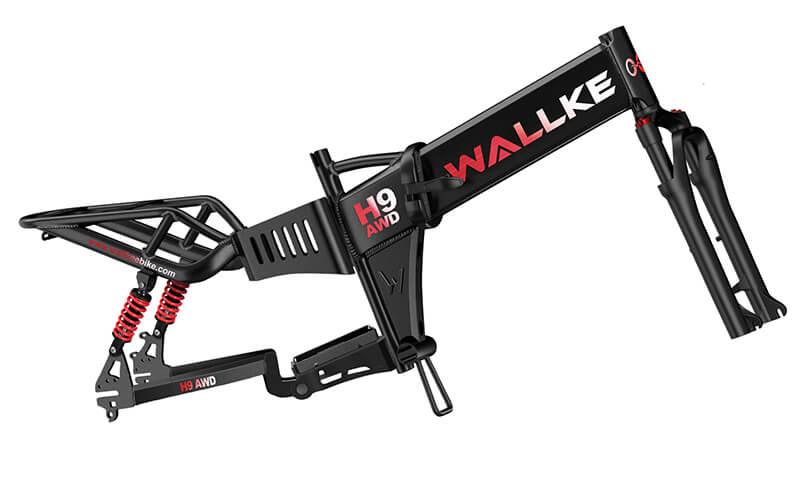

Frame | Thickened 6061 aluminum alloy, folding dual-battery patented design, integrated rear rack |
Fenders | Full coverage sturdy plastic fenders |

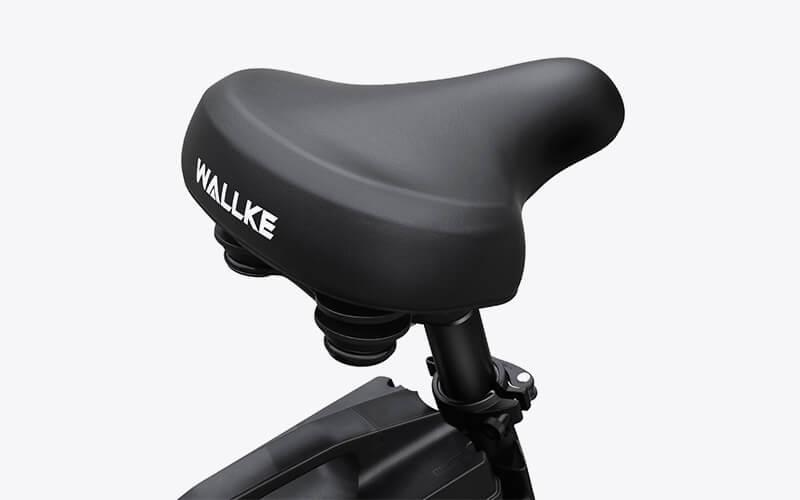

Saddle | Suspension cruiser saddle with flip-up, adjustable |
Seat Post | Adjustable, 33.9*350mm |
Charger | 40Ah: 54.6V 6A fast charger |
60Ah: 54.6V 10A smart fast charger | |
82Ah: One 54.6V 10A and one 54.6V 3A charger | |
Charge Time | 6-8 hours |
Handlebar | Aluminum alloy 660mm x 2.2T |
Handlebar Grips | - |
Controller | 48V 18A + 23A |
Stem | Aluminum alloy adjustable lockout stem |

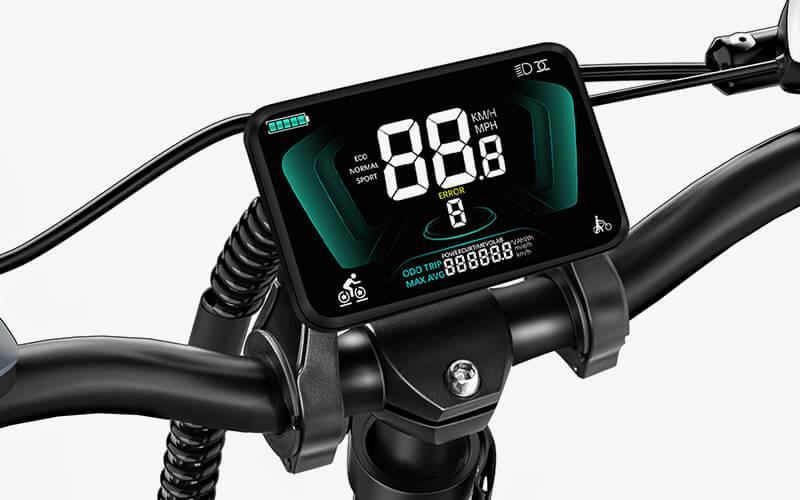

Display | Full-color smart LCD display with USB port / APP control |
Screen Displays | Battery level, current speed, ride mode, light on, single trip, ODO, odometer, Max Speed, Avg speed, etc. |

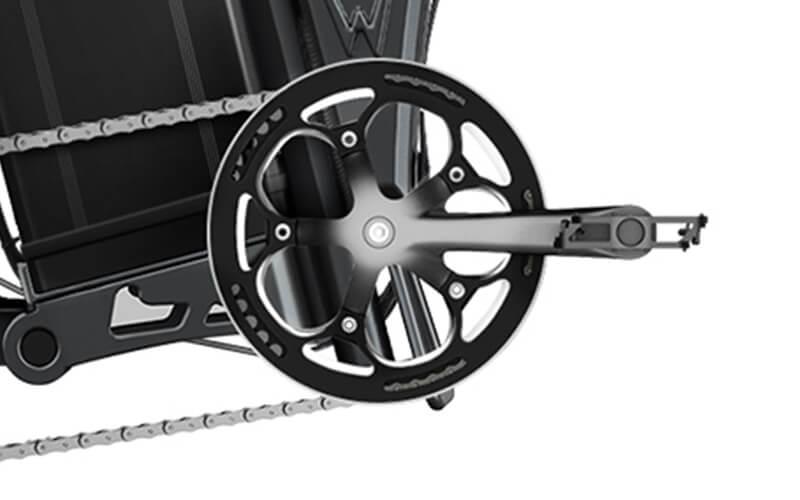

Crank Set | 52T * 170MM, aluminum |
Pedals | Folding aluminum alloy with reflectors, 9/16 |
Function | User programmable (speed/levels/screen timeout/single trip zero clearing/unit switching/password setting/factory restore) |
Chain | 144L |

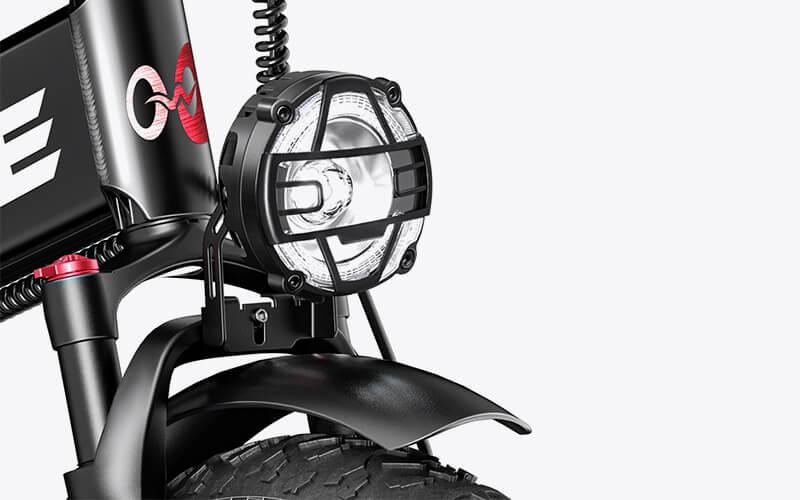

Front Light | 48V 1000LM LED front light, adjustable |
Tail Light | Integrated tail light with brake signal |
Kickstand | Aluminum alloy adjustable edge support |
Cables | Integrated waterproof cable |
Assembly Bolts | Stainless steel screws 304/316L |
Installation Tools | Included |
Throttle | Full twist throttle with horn |
User Manual | Included |
Sensor | Cadence sensor |
Ebike Net Weight | 45kg; 49kg (60Ah version) |
Ride Modes | Switchable between single and dual drive; 3/5/7/9 levels assist or throttle, manual mode; walking mode |
Gross Weight | 61.3kg; 65kg |
Folded Size | 40.2 x 30.3 x 21.7 in / 102 x 77 x 55 cm |

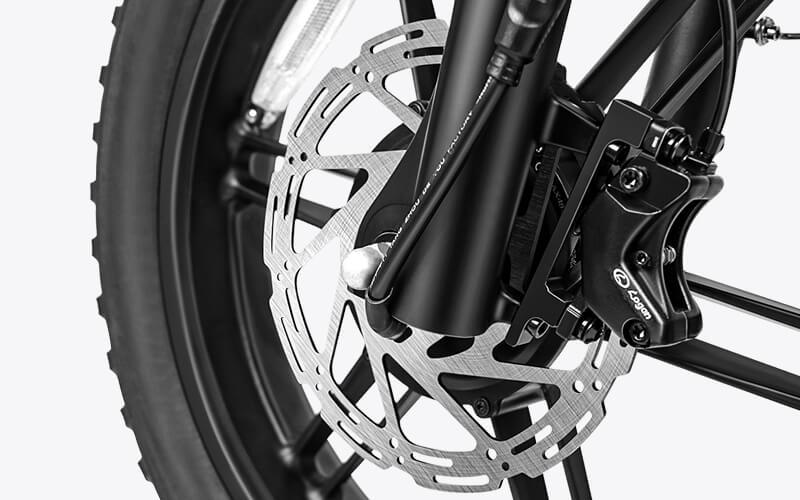

Brakes | 4 pistons dual hydraulic disc brakes with oil pump, power cut-off function |
Rotors | 203 x 3mm front and rear motorcycle rotors for extra durability |
Box Dimensions | 64.6 x 12.6 x 29.9 in / 164 x 32 x 76 cm |
Climbing Angle | 40+ degrees |
Assembled | Pre-assembled 85% |
Rider Heights | 174cm ~ 200cm / 5'85" ~ 6'7" |
Max Payload | 400lb / 181kg |
Rear Rack Payload | 55lb / 25kg |
60Ah Battery Net Weight | 13.7kg / 30.2lb |
Certification | CE, EN15194, TUV, UL2849, patent, MSDS, UL certified |
Other Certification | SAMSUNG battery cells - UL2580, UN38.3; controller - TUV |
Best Uses | Heavy-duty long-range bike for work, commuting, long-distance, and pleasure riding |
Warranty | 1 year |
