Specification:
Model | H7 / H7 AWD |

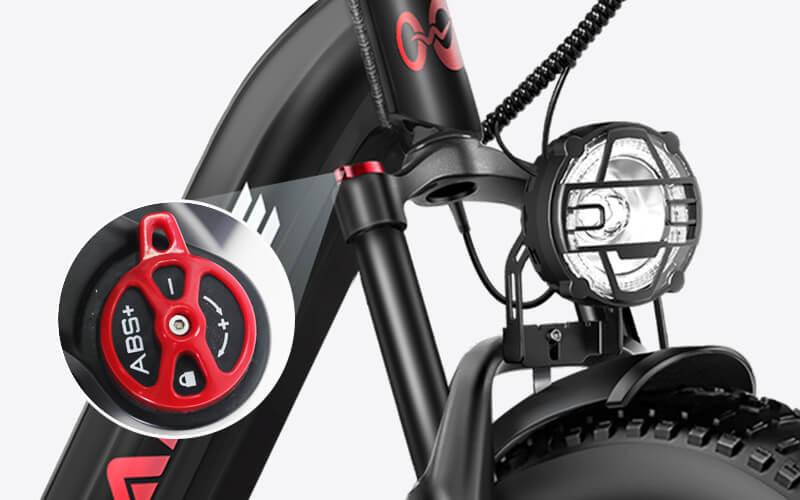

Front Fork | 20" hydraulic suspension with lock and adjust controls, aluminum: H7 AWD - thickened |

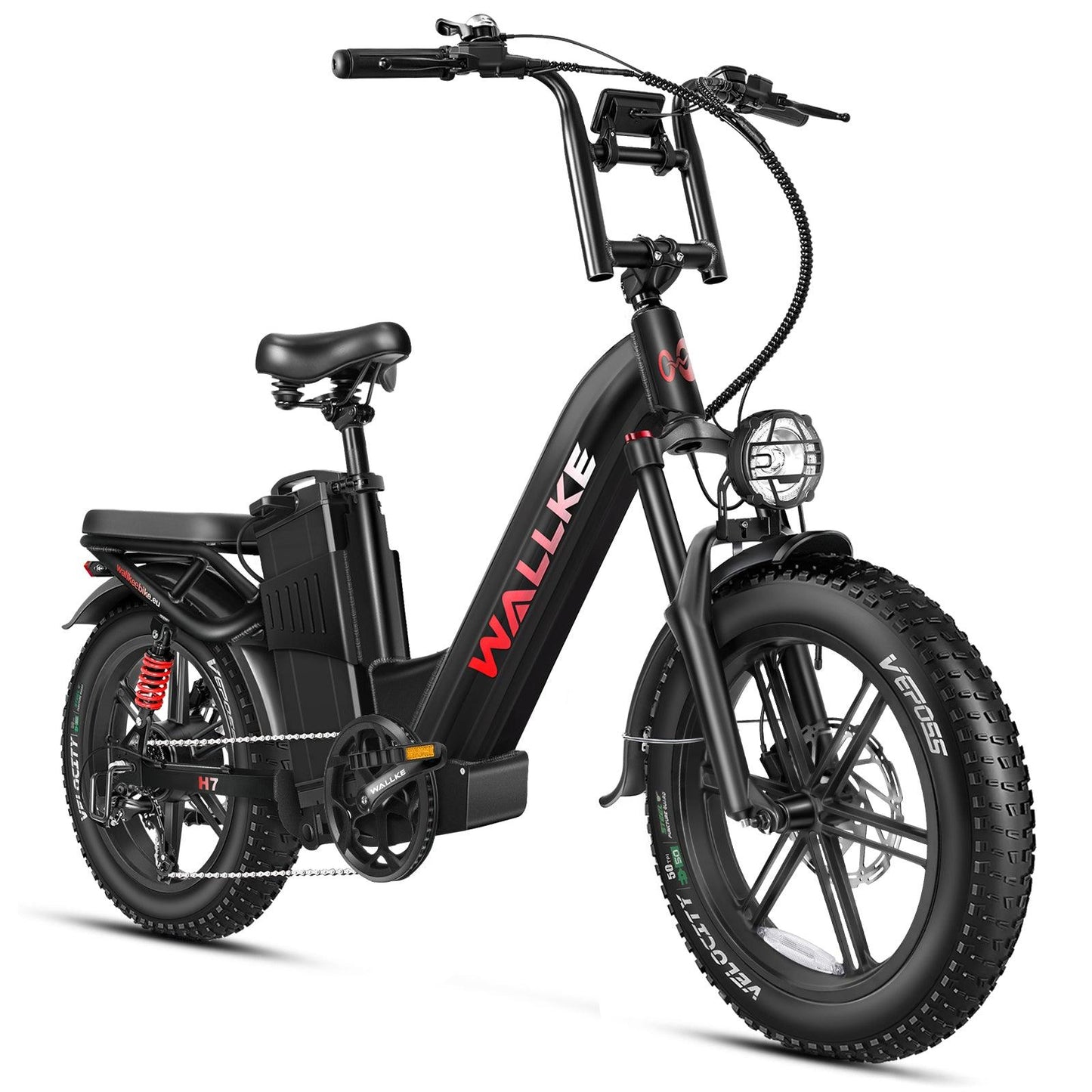

Colors | Black / White |
Class | 1. Pedelecs (Pedal-Assist E-Bikes) |
2. Speed Pedelecs (S-Pedelecs) | |
3. Throttle-Controlled E-Bikes | |

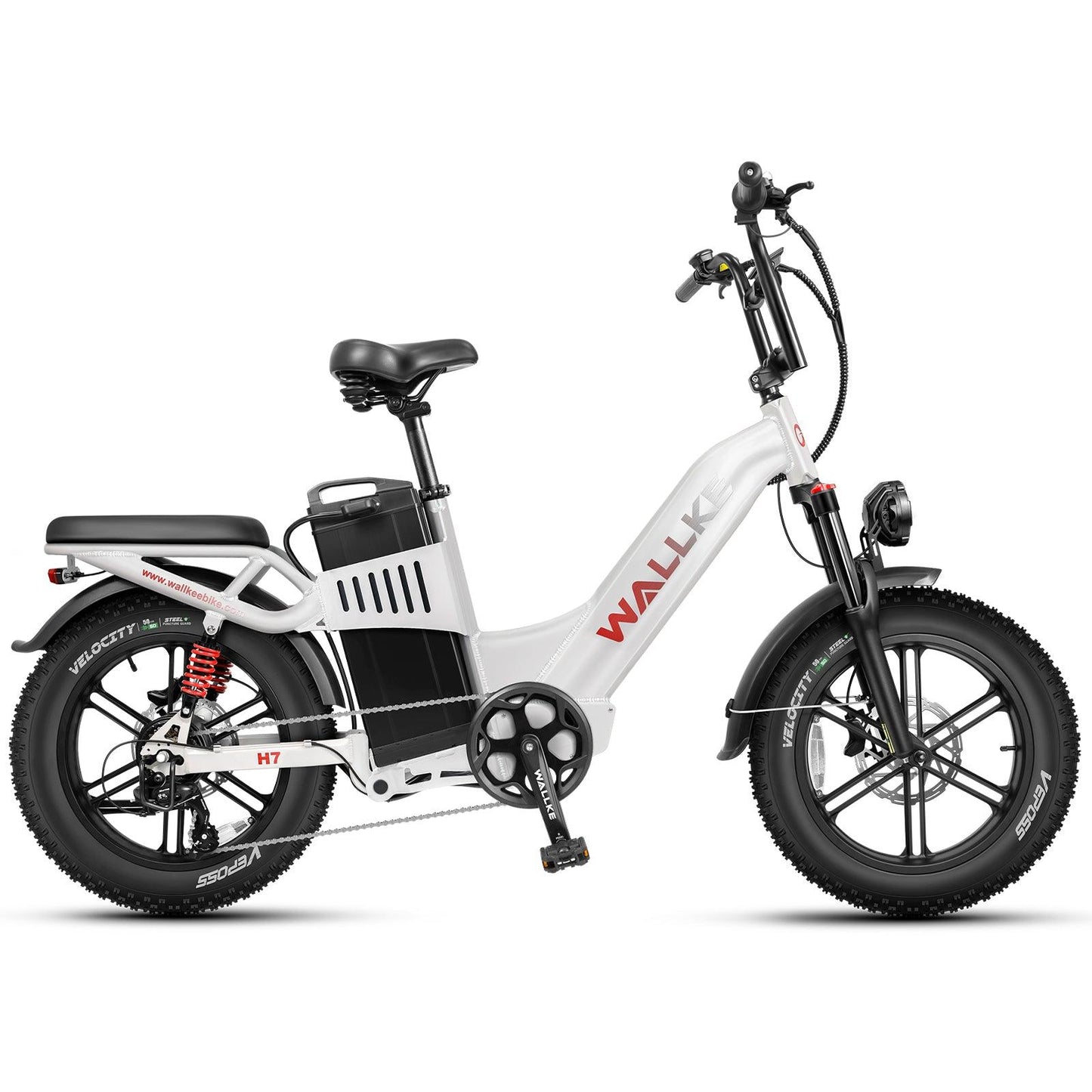

Motor | H7 - 1200W high-speed brushless gear rear hub motor |

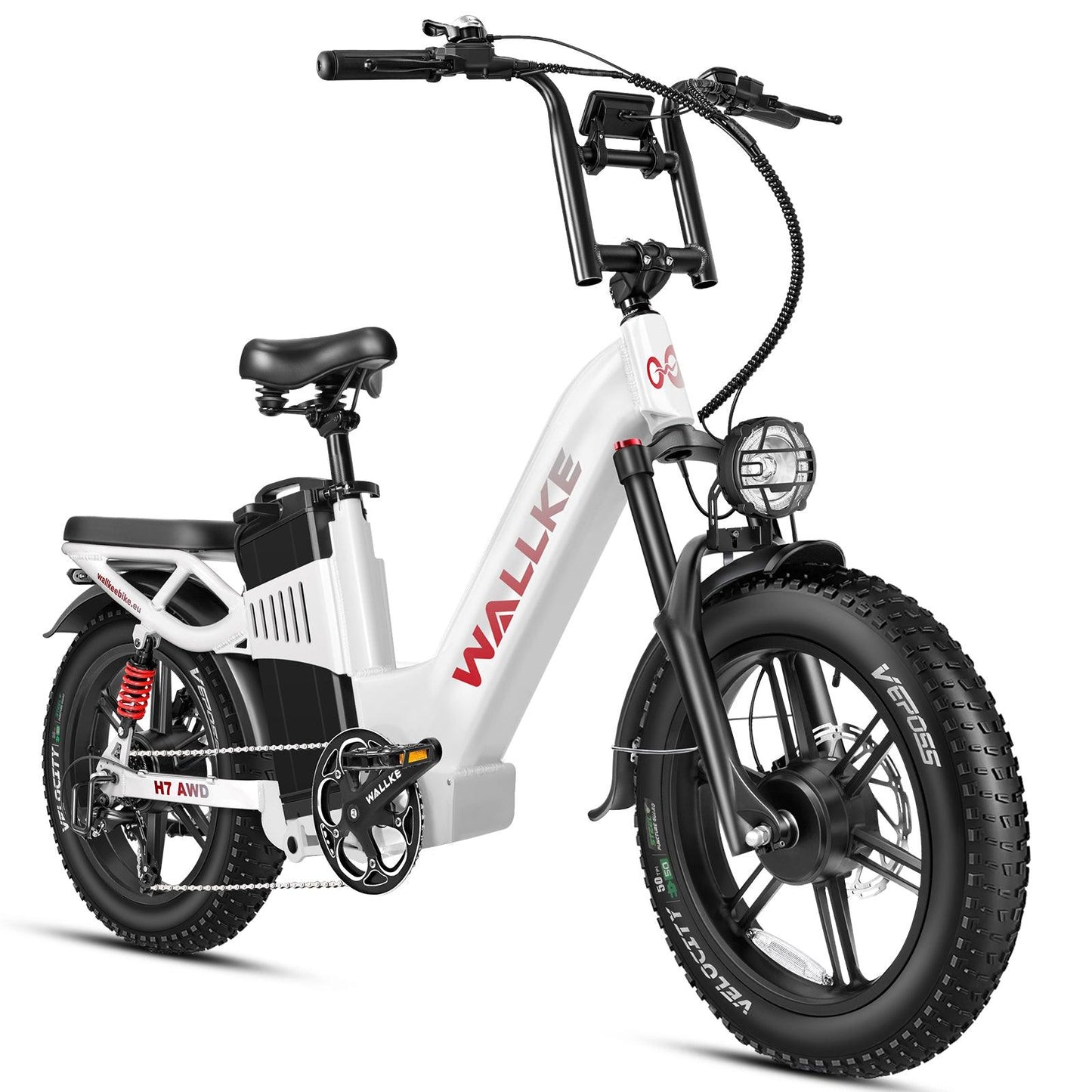

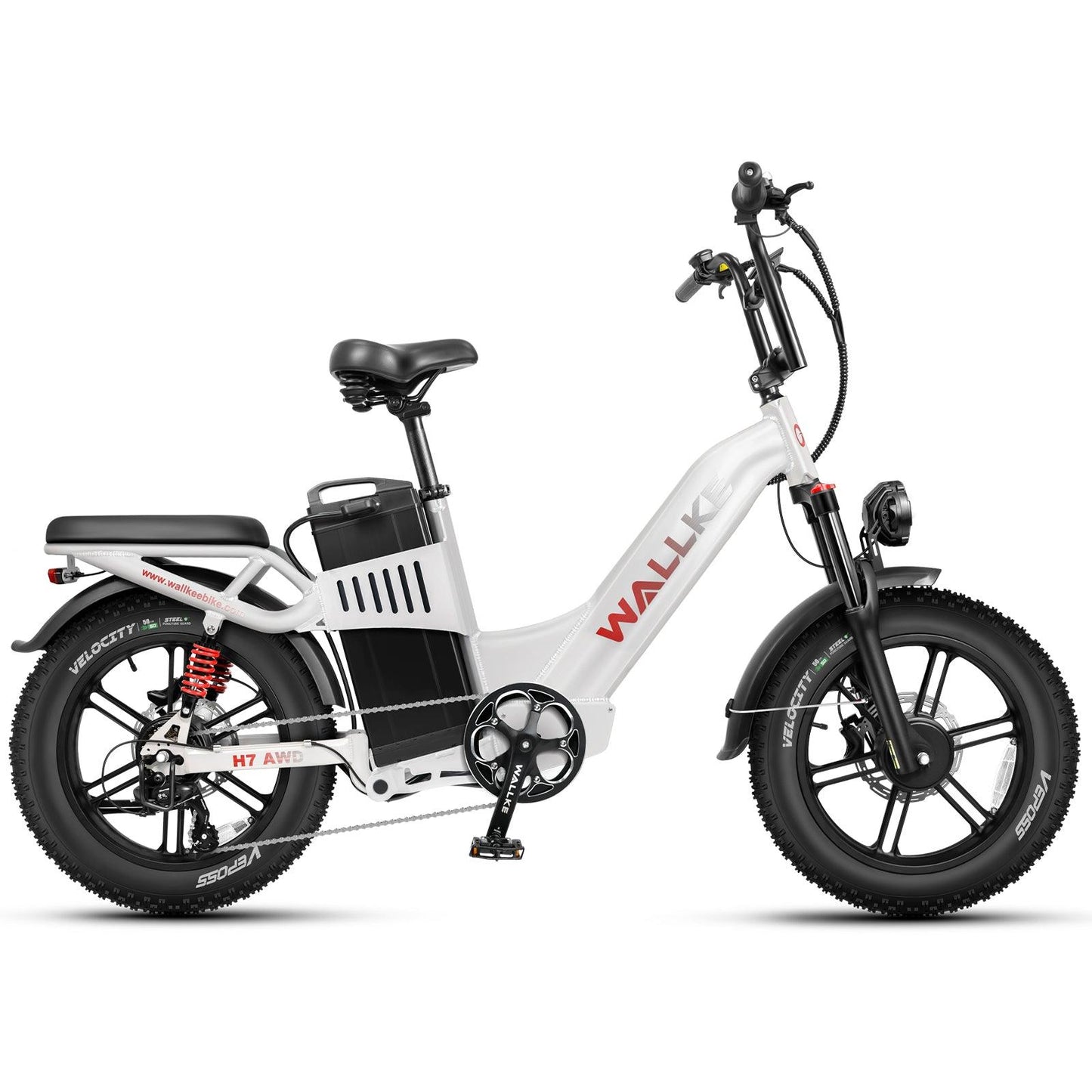

H7 AWD - Two (front + rear) 1000W high-speed brushless gear hub motors | |
Peak Power | H7 - 2000W |
H7 AWD - 3200W (1600W + 1600W) | |
Torque | H7 - 95NM |
H7 AWD - 190NM (95NM + 95NM) | |
Top Speed | 31MPH / 50KPH |
Battery Type | Lithium-ion battery |
Battery Capacity | H7 - 48V/40Ah (1920Wh) |
H7 AWD - 48V/60Ah (2880Wh) | |
Brand of Battery Cell | SAMSUNG |
Charger | 48V 6A smart fast charger; 48V 10A smart fast charger |
Charge Time | 6-8 hours |
Controller | 48V 18A + 22A |

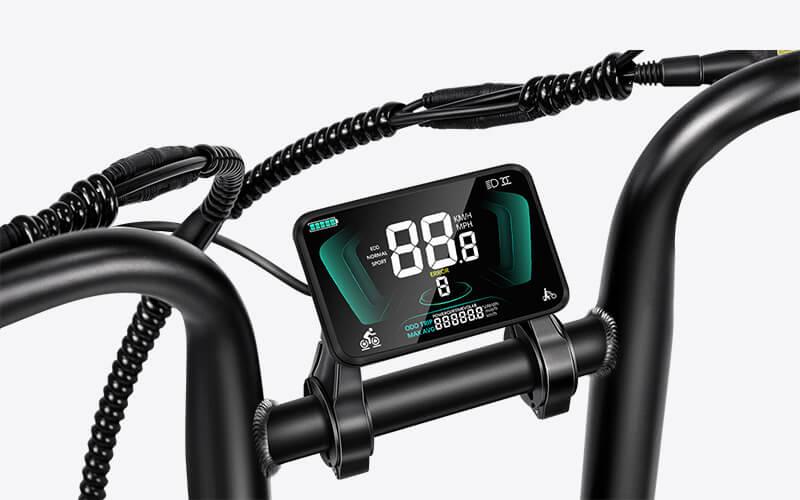

Display | Full-color smart LCD display with USB port / APP control |
Screen Displays | Battery level, current speed, ride mode, light on, single trip, ODO, odometer, Max Speed, Avg speed, etc. |
Function | User programmable (speed/levels/screen timeout/single trip zero clearing/unit switching/password setting/factory restore) |
Ride Modes | 0-3/0-5 levels assist or throttle, manual mode; walking mode |
3/5/7/9 levels assist or throttle, manual mode; walking mode | |
Climbing Angle | 40+ degrees |
Rider Heights | 174 ~ 198cm / 5'85" ~ 6'6" |
Max Payload | 400lb / 181kg |
Rear Rack Payload | 55lb / 25kg |
Ebike Net Weight | 48kg; 55kg (H7 AWD) |
Gross Weight | 59kg; 67kg (H7 AWD) |

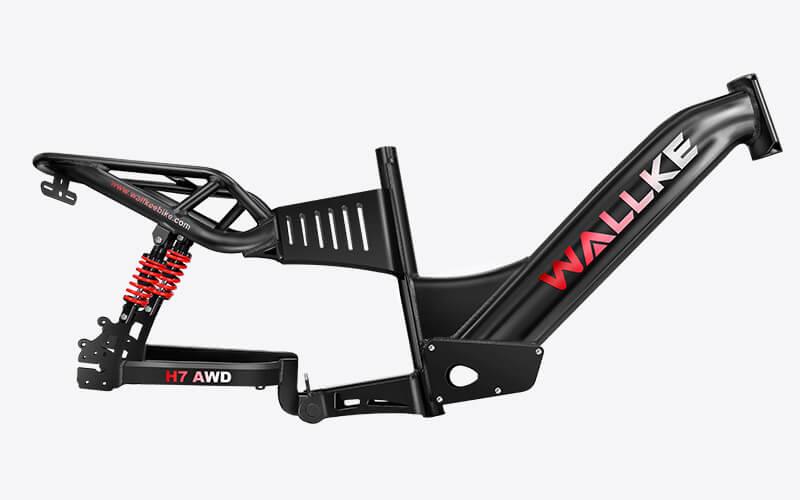

Frame | Thickened 6061 aluminum alloy, folding dual-battery patented design, integrated rear rack |
Fenders | Full coverage thickened plastic fenders |

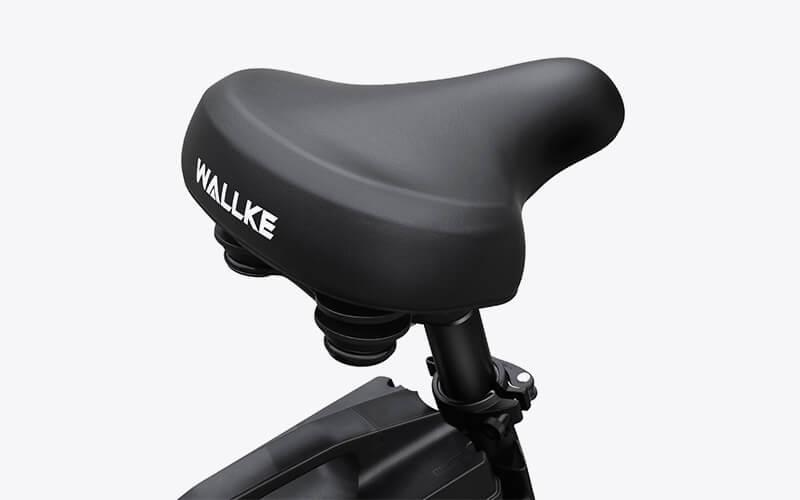

Saddle | Suspension cruiser saddle with flip-up, adjustable |
Seat Post | Adjustable, 33.9*350mm |
Handlebar | Aluminum alloy 660mm x 2.2T |
Stem | Aluminum alloy adjustable lockout stem |

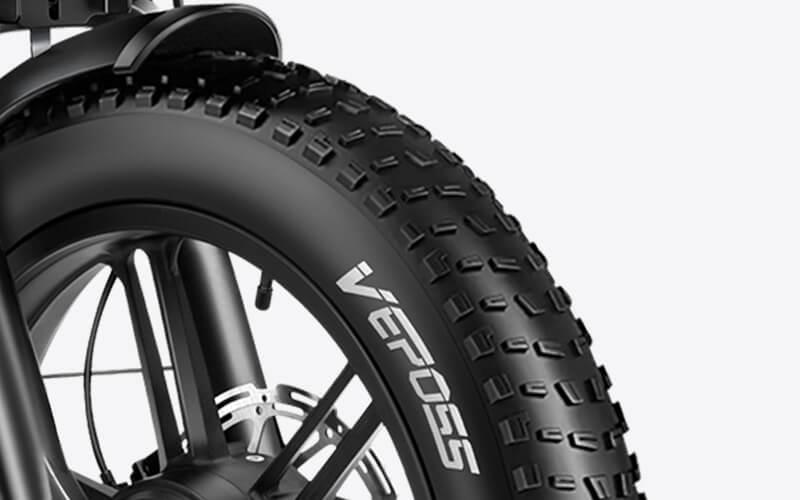

Tires | 20" x 4" all-terrain fat tires (with puncture resistance) |
Tubes | 20" x 4.0" thickened tubes |

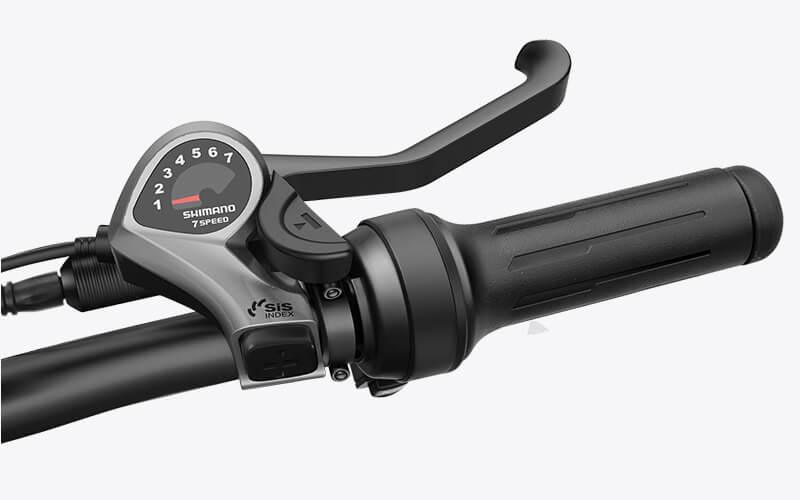

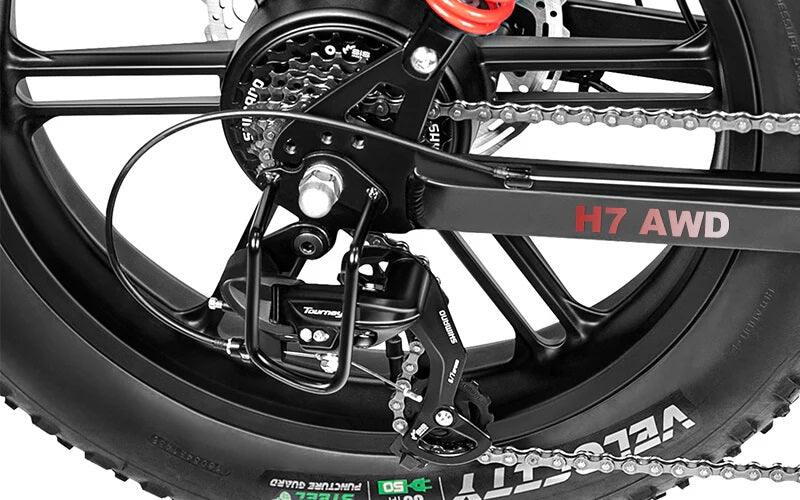

Derailleur | Shimano 7-speed rear derailleur system |
Rim | Mag wheel |
Freewheel | 7 Speed cassette |

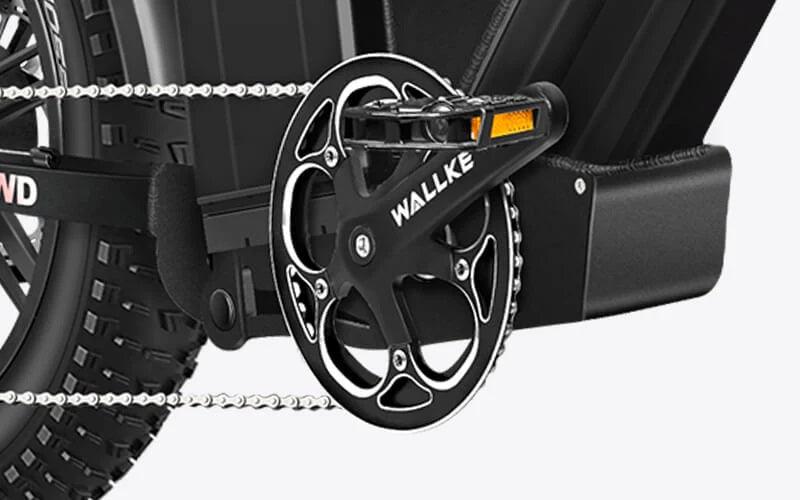

Crank Set | 48T * 170MM, aluminum + plastic cover; 48T * 170MM, aluminum |
Pedals | Folding plastic with reflectors, 9/16; Folding aluminum alloy with reflectors, 9/16 |

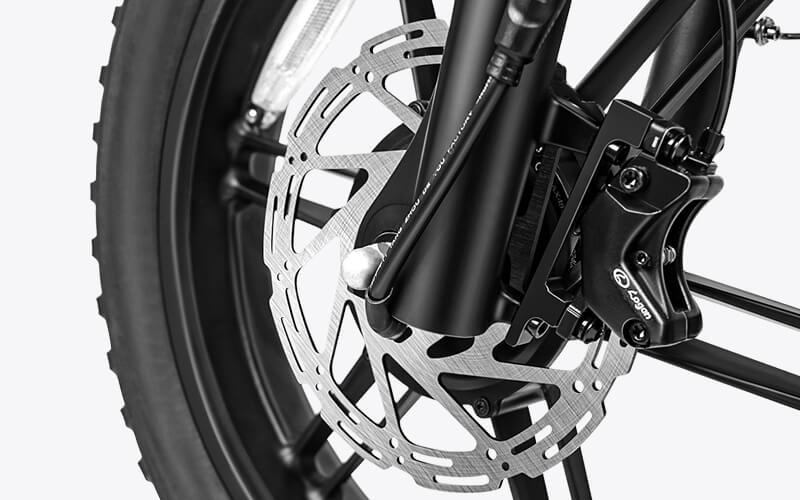

Brakes | 4 pistons dual hydraulic disc brakes with oil pump, power cut-off function |
Rotors | 203 x 3mm front and rear motorcycle rotors for extra durability |

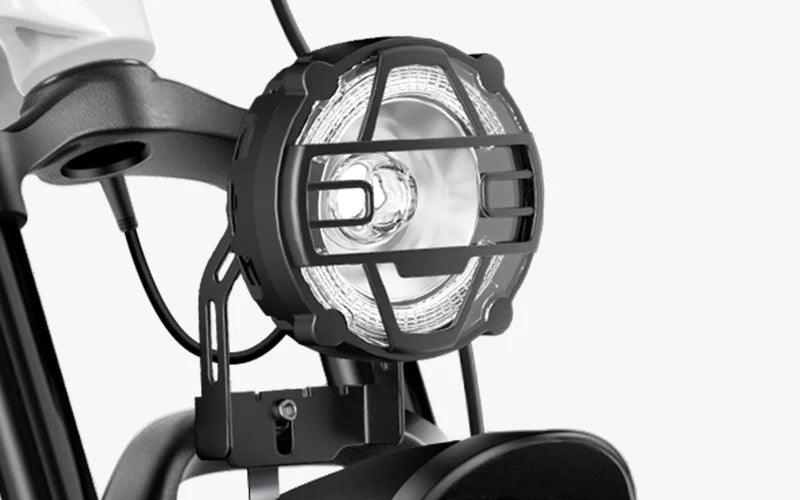

Front Light | 48V 1000LM LED front light, adjustable |
Tail Light | Integrated tail light with brake signal |
Kickstand | Aluminum alloy adjustable edge support |
Cables | Integrated waterproof cable |
Installation Tools | Included |
Assembly | Pre-assembled 85% |
Box Dimensions | 65.8 x 12.6 x 30.7 in / 167 x 32 x 78 cm |
Certification | CE, EN15194, TUV, UL2849, patent, MSDS, UL certified |
Other Certification | SAMSUNG battery cells - UL2580, UN38.3; controller - TUV |
Best Uses | Heavy-duty long-range bike for work, commuting, long-distance, and pleasure riding |
Warranty | 1 year |
60Ah Battery Net Weight | 13.7kg / 30.2lb |
