FEATURES
The bike comes with a Battery and a charger.
All Fiido bikes come with mudguards and light

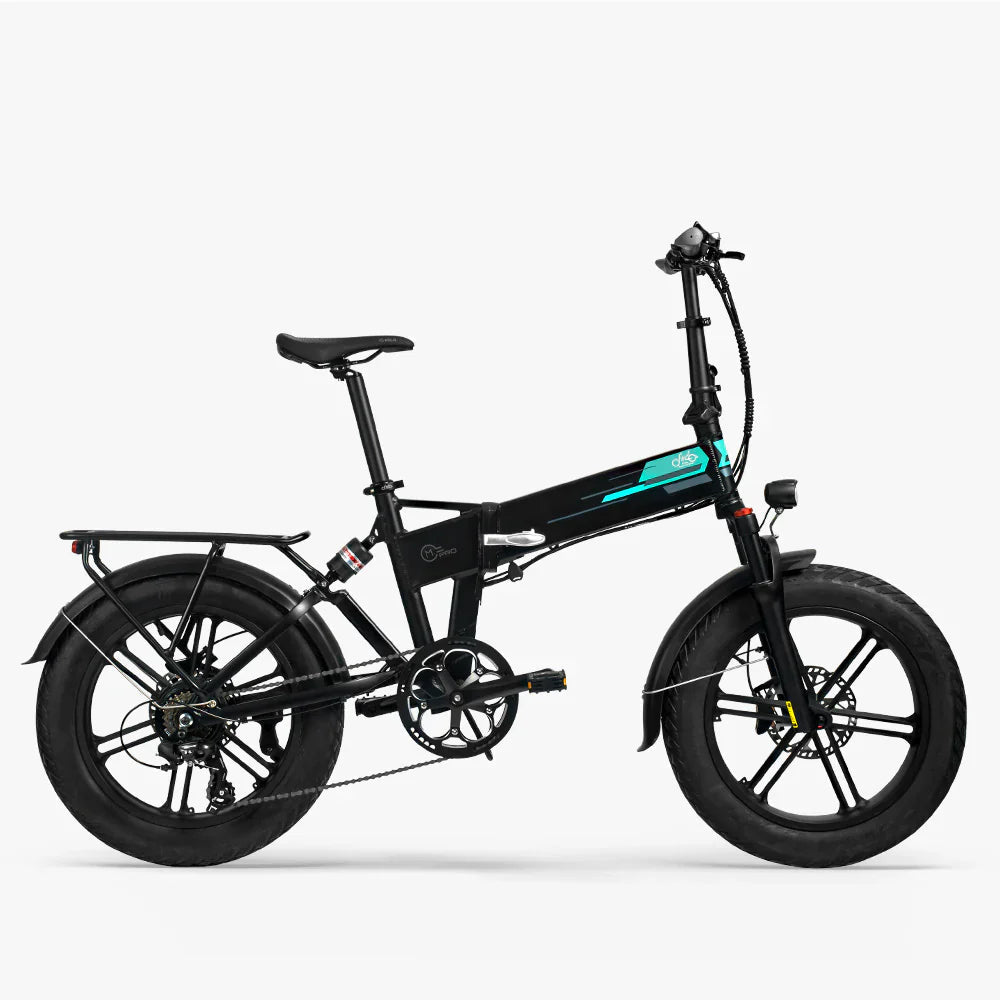

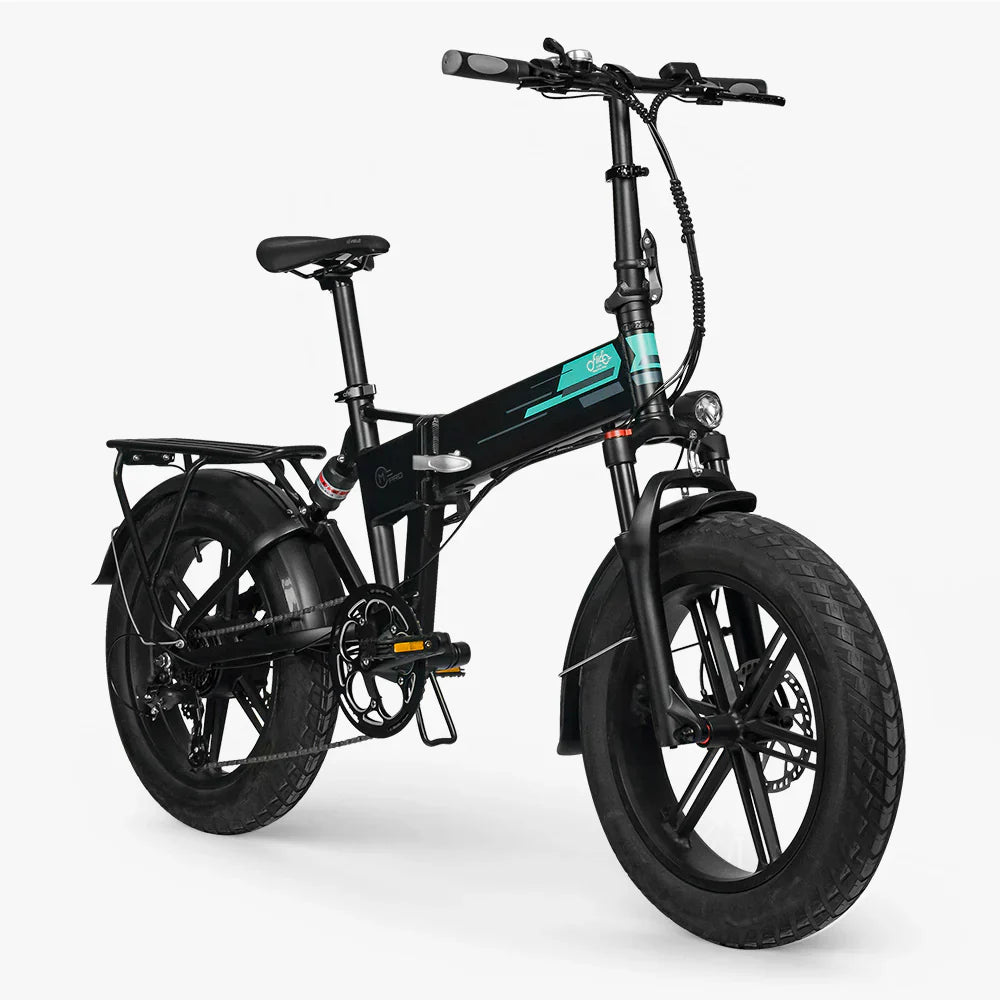

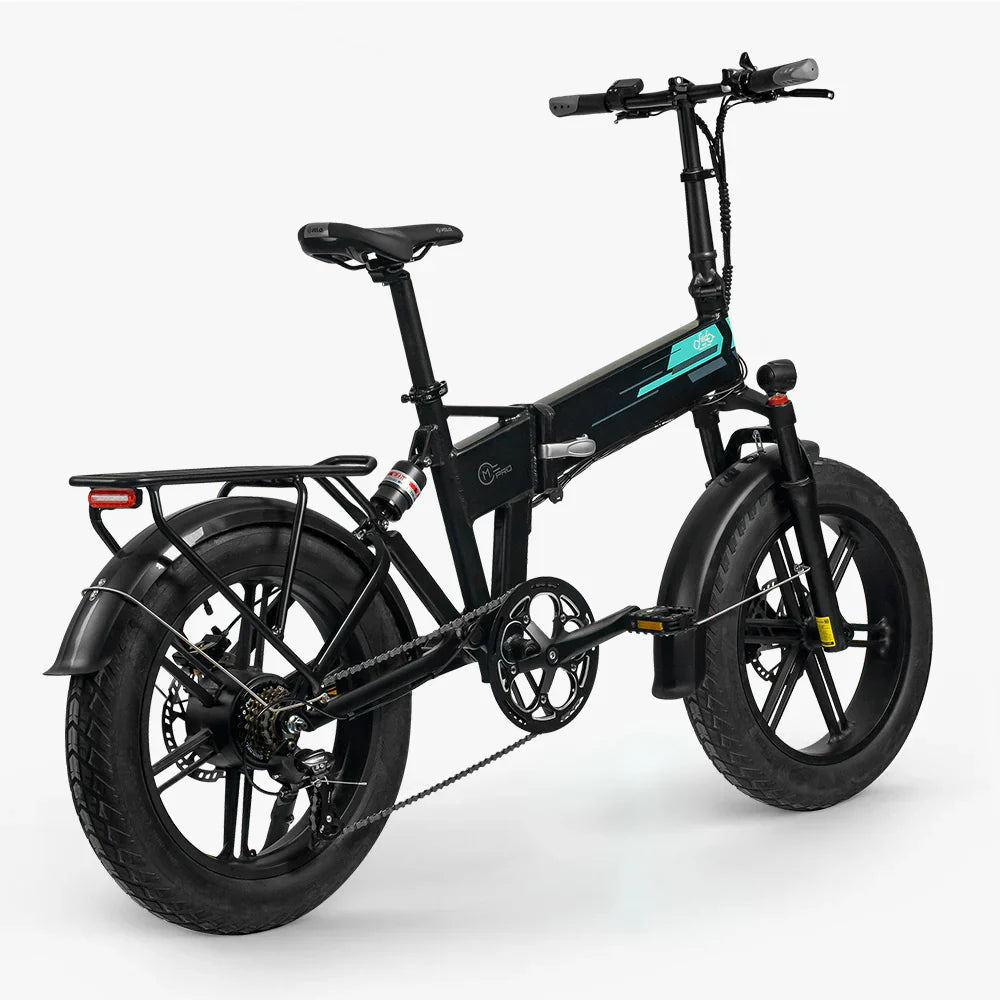

Fiido M1 Pro Electric Bike
- Available on the Bike to Work Scheme/Cycle to Work scheme
- 12-Month Warranty
- Multiple Payment Options
- Secure Payment
Contact Vostro Cycles for more details.
Fat Tires for All Terrains
Our ultra-wide 20″ x 4.0 fat tires are ideal for tackling any terrain with ease, ensuring a smooth and confident ride on rugged trails or concealed roads.
Mighty Motor, Versatile Gearbox
The robust motor combined with a versatile 7-speed gearbox empowers the M1 Pro to conquer diverse terrains with ease.
Full Absorbers
Fiido’s advanced front and rear shock absorbers ensure you enjoy the utmost comfort.
Foldable Frame
Take it with you to any destination of your choice and unfold your adventures.
Removable Battery
Take your battery with you for charging anytime, anywhere.
500W STRONG MOTOR
A powerful 500W motor comes paired with a wide-range 7-speed derailleur that allows the M1 Pro to reach a top speed of 40KM/h, providing the assistance needed to reach your destination promptly regardless of terrain and weather conditions. Moreover, the 7-speed seamless shift fully achieves a freewheeling control.
20*4.0″ OFF-ROAD FAT TIRE
The 20*4-inch wheels and ultra-wide rims mesh with the all-terrain fat tires and anti-skid tread pattern design to help you easily traverse the jungle, sand, rocky beaches, puddles, and other daunting terrains.
SHOCK ABSORBER
The full suspension shock absorber eliminates all bumps, which means you no longer have to steer clear of pebbles or rocky trails. The high-performance M1 guarantees safer and smoother cycling.
500 TIMES RECHARGEABLE
The high-torque 48V battery can achieve rapid acceleration and a maximum range of 130KM on a 12.8Ah fully-charged capacity, enabling you to travel long distances with ease. Taking only 9 hours to fully charge, the 500 cycles of rechargeable battery life allow’s you to venture out again with minimal downtime.

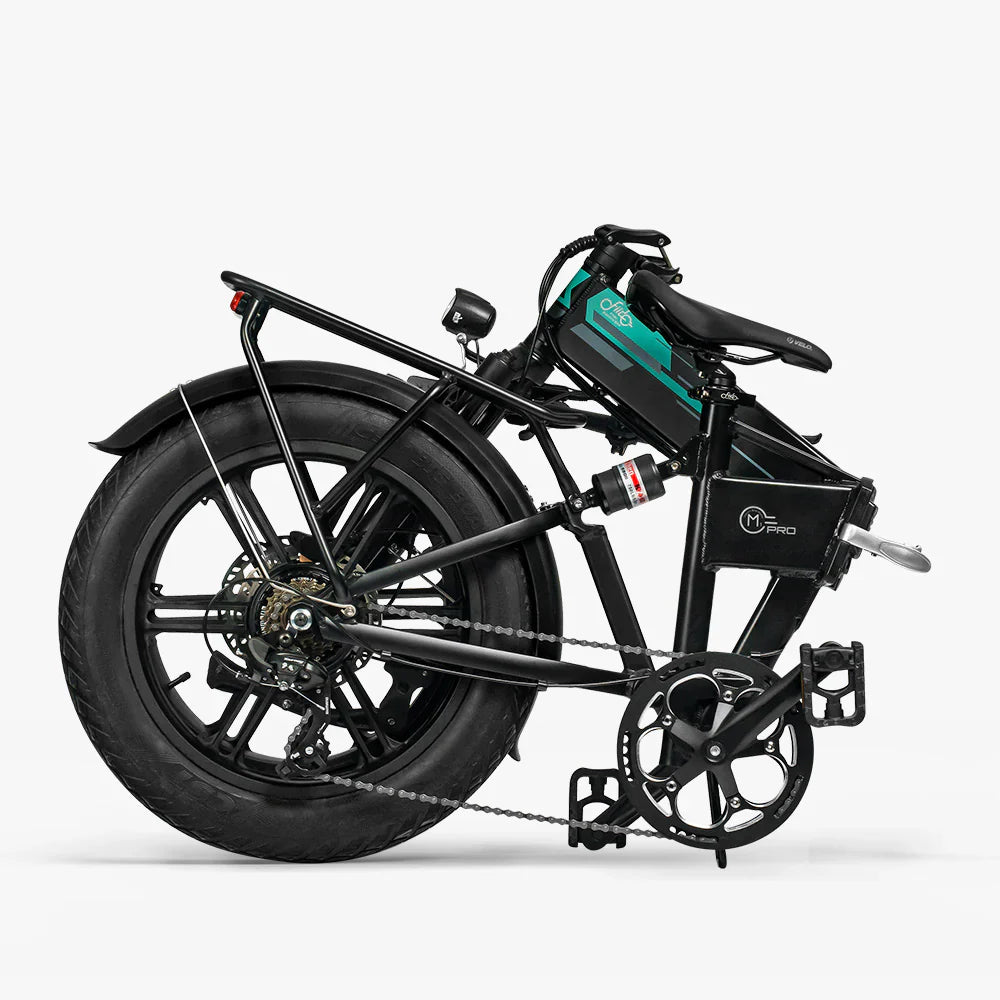

PORTABLE STRUCTURE
The M1 features an adjustable bicycle body and portable structure with a collapsible size of 96*79*45cm, making it convenient to carry in the car trunk, on the subway, or even onto the train.
Technical Specifications
Model: Fiido M1pro
Voltage: 48V
Battery: High quality 48V 12.8Ah lion battery
Battery cycle times: 800 times
Moped mode range: 130KM / 80Miles
Max speed : 40km/h(24.8mph)
Working temperature -10¡Æ¢¦50¡Æ
Frame material: Aluminium alloy
Colour: Black
Max load: 120kg
Net weight : 25kg(with battery)
Tire size: 20¡±*4.0 inch
Saddle Height: 80cm~110cm
Folding size 960mm(long)*450mm(width)*790mm(height)
Ebike size 1750mm(long)*580mm(width)*1060mm(height)
Charging time 9 hours
Geometry
All measurements provided in mm unless otherwise noted. | |
Rider heights | 4’11(150cm)-6’7 (200cm) |
Wheel size | ST 20*4.0 |
A—Seat tube | 425 |
B—Seat tube angle | 75° |
C—Head tube | 130 |
D—Head angle | 74.5° |
E—Top tube length | 648 |
F—Standover height | 708 |
G—BB drop | -40 |
H—Rear Center | 505 |
I—Wheelbase | 1155 |
J—Reach | 474 |
K—Stack | 504 |
L— Rear Suspension Length | 125 |
M— Maximum seat height | 1060 |
N— Minimum seat height | 830 |
O—Maximum Handlebar height | 1410 |
P—Minimum Handlebar height | 1110 |
Q—Handlebar length | 580 |
R—Total length | 1750 |
S—Folding length | 1010 |
T—Folding height | 770 |
U—Steerer Tube Length | 148 |
V—Steerer Tube Outer Diameter | 28.6 |
W—Steerer Tube Inner Diameter | 25.4 |
What’s in the box
Electric bike*1
Manual*1
Charger*1
Rear Reflector*1
Open Spanner
Kickstand*1
Front Wheel Quick Release*1
Headlight*1
Fender*1
Hex Wench*1
Keys*1
Rear Rack*1
More Reasons to Love It
The luggage rack allows you to carry your essentials easily and efficiently.
Rear brake light increases your visibility, improving road safety.
Extendable head tube for adjustable height and comfort
Ergonomic Vole Saddle ensure a comfortable experience during long runs.
800 recharges-this battery is built to last.
Hydraulic braking system ensures reliable stopping.
Durable one-piece wheel, maintenance-free.
Adjustable stem customizes for a perfect fit.
Shimano 7-speed gears navigate any terrain with precision.
